Electrical
Voltage: 50 Volts AC (per pin)
Current: AWG#24/4.0 A
AWG#26/3.0 A
Contact Resistance: 40 mΩ max.
Dielectric Withstanding Voltage 500 VAC Min.
Insulation Resistance: 500 MΩ min.
Operating Temp. : -40℃ ~ +85℃
Specification(Abbreviation)

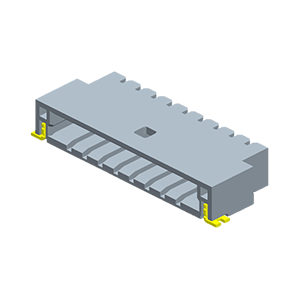

Family: Wafer
Pitch (mm): 1.5
PCB Mounting: SMT
Operation Direction: S/R R/A
Product Height (mm): 3
AWG#: 24~26
Current (A): AWG#24/4.0A, AWG#26/3.0A
Mates With: Housing: 51203-xxxH; Terminal: 51203-T(AWG24)
Outer Lock: No
Circuits: 9
