Electrical
Voltage: 50V AC
Current: AWG#24/3.5A
AWG#26/3.5A
AWG#28/3.0A
Contact Resistance: 20mΩ max.
Dielectric Withstanding Voltage: 300V AC/rms
Insulation Resistance: 500 MΩ min.
Operating Temp. : -40℃ ~ +80℃
Specification(Abbreviation)

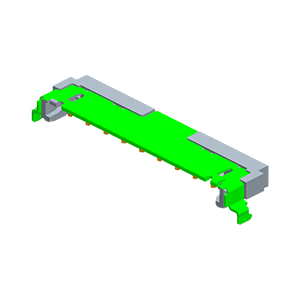

Family: Wafer
Pitch (mm): 2
PCB Mounting: SMT
Operation Direction: S/R R/A
Product Height (mm): 2.02
AWG#: 24~28
Current (A): AWG#24/3.5A, AWG#26/3.5A, AWG#28/3.0A
Mates With: Housing: 50459-xxxHxMx-002; Terminal: 50459-T(AWG24)
Outer Lock: No
Circuits: 6,8,9,10
