Electrical
Voltage: 50 Volts AC (per pin)
Current: AWG#24/3.0A
AWG#26/3.0A
AWG#28/2.5A
AWG#30/1.5A
Contact Resistance: 40 mΩ max.(initial)per contact
20 mΩ max.Change allowed
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 500MΩ min.
Operating Temp. : -25℃ ~ +85℃
Specification(Abbreviation)

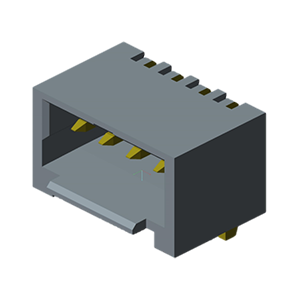

Family: Wafer
Pitch (mm): 1.5
PCB Mounting: SMT
Operation Direction: S/R S/T
Product Height (mm): 5.75
AWG#: 24~30
Current (A): AWG#24:3.0A, AWG#26:3.0A, AWG#38:2.5A, AWG#30:1.5A
Mates With: Housing: 50294-xxxH; Terminal: 91203-000xx(AWG#24-30)
Outer Lock: No
Circuits: 4,5,6,7,8,9,10,12,13,15,18
