Electrical
Voltage: 50V AC
Current: 0.2~0.35A
Contact Resistance: 90mΩ max.
Dielectric Withstanding Voltage: 150V AC/rms
Insulation Resistance: 100 MΩ min.
Operating Temp. : -55℃ ~ +85℃
Specification(Abbreviation)

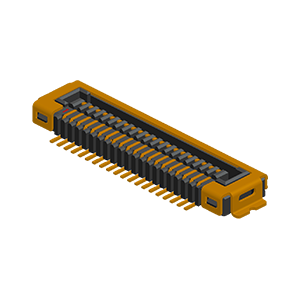

Family: Coaxial Receptacle
Pitch (mm): 0.5
PCB Mounting: SMT
Operation Direction: S/R S/T
Product Height (mm): 2
AWG#: 32~42
Current (A): AWG#36/0.30A(Coaxial), AWG#40/0.25A(Coaxial), AWG#42/0.20A(Coaxial), AWG#32/0.35A(Discrete), AWG#34/
Mates With: 50407
Outer Lock: No
Circuits: 20,30,40
High Speed Support: USB3.2 Gen 1(5Gbps)
